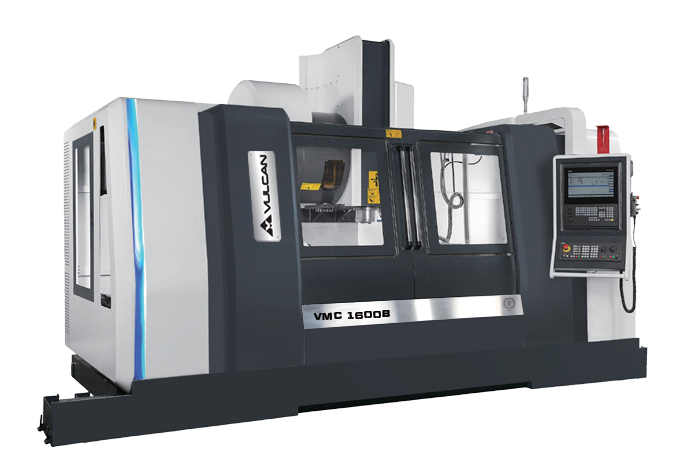

VULCAN HEAVY CUTTING VERTICAL MACHINING CENTRES
+ The casting assembly of Vulcan machining centres have been designed using a Finite-Element- Analysis process to ensure the machine can handle cutting forces and weight loads associated with the demands of the machine specifications.
+ All axes use box way design, which allows Vulcan VMC’s to accommodate extremely heavy loads whilst maintaining smooth motion with increased dampening and cutting force characteristics.
+ The Vulcan base and saddle utilise a wide design to prevent issues with sagging and overhanging when loading heavy components.
+ The Z-axis casting uses a reinforced rib design to achieve structural strength through the entire casting length.
+ Each axis uses a grade C3 precision-ground ball screw and a pre-tensioned design in order to improve Vulcan’s performance, with each axis motor directly coupled to the ball screw.
MODEL
UNIT
VMC 1600B
VMC 1800B
VMC 2000B
VMC 2200B
VMC 2500B
TRAVEL
X-axis
mm
1600
1800
2000
2200
2500
Y-axis
700
900 (1000)
Z-axis
650
900
Spindle centre to column
730
1055
Spindle nose to table surface
150~800
250~1150
TABLE
Table (L x W)
1750 x 700
1950 x 900
2150 x 900
2350 x 1000
2600 x 1000
T-slot (No. x Width)
5 x 18 x 100
5 x 22 x 160
5 x 22 x 165
Max. table load
kg
1500
MAX.
TRAVERSE SPEED
X / Y / Z-axis
M/min
20 / 20 / 15
15 / 15 / 12
ATC
Swing Arm type BT-40
T
24 / 30
Chain type BT-50 (Opt.)
32 / 40
32 / 40 / 48
SPINDLE
Type-CAT/BT/DIN (Opt. HSK)
40 / 50
Motor (Other power options)
kW
11~15 (15~18.5)
15~18.5 (18.5~22)
Direct-drive BT-40
rpm
10000 / 12000 / 15000
Belt-drive BT-40 (Opt.)
8000 / 10000 / 12000
Built-in spindle (Opt.)
20000 / 30000 (BT-40/ HSK-E40/50/63)
Belt-drive BT-50 (Opt.)
pm
6000 / 8000
Direct-drive BT-50 (Opt.)
8000 / 10000
MISCELLANEOUS
Power consumption
KVA
45
55
60
Pneumatic supply
kg/cm2
5.5~6.5
Coolant tank capacity
L
560
Machine weight
12000
20000
23000
27000
30000
Floor space requirement (LxW)
4520 x 2244
4900 x 3312
5420 x 3475
5700 x 3500
6000 x 3700
Floor space requirement
(with conveyor) (LxW)
5680 x 2244
6058 x 3312
6578 x 3475
6900 x 3500
7300 x 3700
// 20 bar CTS
// Belt type chip conveyor
// Tool kit
// Spindle chiller
// Mechanical oil/coolant separator
// 3-colour beacon light
// Rigid tapping
// LED work light
// Levelling blocks & bolts
// Spindle bearing air purge
// Heat exchanger for electrical cabinet
// Auto interrupt & power off system (M30)
// Z axis motor with brake system
// Coolant pump
// Portable hand wheel
// Guideway covers (X,Y,Z)
// Spindle coolant nozzle system
// CNC control manuals, Operation manual, Maintenance manual
// Central lubrication system
// Auxiliary coolant gun
// Inspection report (digital format)
// Fully enclosed machining area
// Cutting air blast
// Wash down system
