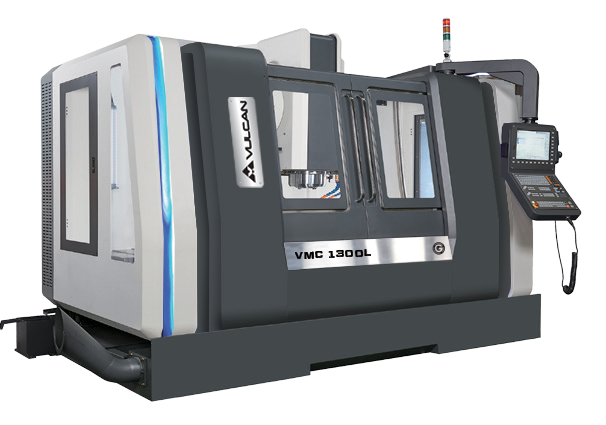

VULCAN HIGH-SPEED AND PRECISION MACHINING CENTRES
+ The casting assembly of Vulcan machining centres have been designed using a Finite-Element-Analysis process to ensure the machine can handle cutting forces and weight loads associated with the demands of the machine specifications.
+ All axes use an extra-wide 45mm roller type linear guideway to allow Vulcan VMC’s to accommodate heavy loads with fast accelerations and low friction whilst maintaining accurate positioning.
+ The Vulcan base and saddle utilise a wide design to prevent issues with sagging and overhanging when loading heavy components.
+ The Z-axis casting uses a reinforced rib design to achieve high structural strength through the entire casting length.
+ Each axis uses a grade C3 precision-ground ball screw and a pre-tensioned design In order to improve Vulcan’s performance, with each axis motor directly coupled to the ball screw.
MODEL
UNIT
VMC 1200L
VMC 1300L
VMC 1400L
VMC 1500L
VMC 1600L
TRAVEL
X-axis
mm
1200
1300
1400
1500
1600
Y-axis
700
850
Z-axis
Spindle centre to column
730
Spindle nose to table surface
130~830
130~980
TABLE
Table (L x W)
1350 x 700
1450 x 700
1500 x 800
1650 x 700
1700 x 800
T-slot (No. x Width)
5 x 18 x 100
7 x 18 x 100
Max. table load
kg
1000
1800
MAX.
TRAVERSE SPEED
X / Y / Z-axis
M/min
30 / 30 / 24
24 / 24 / 24
25 / 25 / 20
ATC
Swing Arm type BT-40
T
24 / 30
Chain type BT-50 (Opt.)
32 / 40
SPINDLE
Type-CAT/BT/DIN (Opt. HSK)
40 / 50
Motor (Other power options)
kW
7.5~11
11~15
15~18.5
(11~15)
(15~18.5)
(18.5~22)
Direct-drive BT-40
rpm
10000 / 12000 / 15000
Belt-drive BT-40 (Opt.)
8000 / 10000 / 12000
Built-in spindle (Opt.)
20000 / 30000 (BT-40/ HSK-E40/50/63)
Belt-drive BT-50 (Opt.)
6000 / 8000
Direct-drive BT-50 (Opt.)
8000 / 10000
MISCELLANEOUS
Power consumption
KVA
35
45
55
Pneumatic supply
kg/cm2
5.5~6.5
Coolant tank capacity
L
510
560
580
Machine weight
7800
9000
14000
11000
15000
Floor space requirement (LxW)
3398 x 2221
3650 x 2220
4600 x 3200
4150 x 2221
4480 x 3200
Floor space requirement
(with conveyor) (LxW)
4500 x 2221
4620 x 2220
5800 x 3200
5131 x 2221
6000 x 3200
// 20 Bar CTS
// Safety Door
// Tool kit
// Spindle chiller
// Mechanical oil/coolant separator
// 3-colour beacon light
// Rigid tapping
// LED work light
// Levelling blocks & bolts
// Spindle bearing air purge
// Heat exchanger for electrical cabinet
// Auto interrupt & power off system (M30)
// Z axis motor with brake system
// Coolant pump
// Portable hand wheel
// Guideway covers (X,Y,Z)
// Spindle coolant nozzle system
// CNC control manuals, Operation manual, Maintenance manual
// Central lubrication system
// Auxiliary coolant gun
// Inspection report (digital format)
// Fully enclosed machining area
// Cutting air blast
// Wash down system
