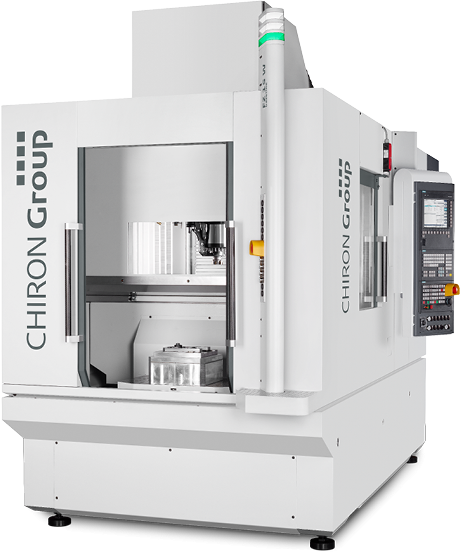

BASELINE FZ15W

Chiron

Enquire

With this new product line our engineers have combined proven technologies with CHIRON perfection.

The results are our three optimally configured BASELINE machines. These cost-effective, fully specified precision machining centres are ready and waiting to meet your production demands.

The FZ15 W has enormous ability for high miling capacity and is among the best machining centre of its class in terms of speed, compact construction, stability and reliability. The heart of its technology is the CHIRON basket tool changer which offers high positioning accuracy, since the travelling column does not need to change it’s X – Y position during a tool change.

Your advantages

  • Perfectly configured
  • Cost effective
  • Universal application
  • Long low-maintenance life
  • Global comprehensive support
  • Quality “Made by CHIRON, Germany”
Technology information
Travel (X / Y / Z) 550 / 400 / 425 (360) mm
Main spindle 10.500 min-1
Drive power (15% ED) 14 kW
Torque 90 Nm
Tool places 20 tools
Tool shaft SK40 / HSK-A63
Rapid traverse 40m/min
NC-control Siemens
Rotary table workpiece swivel table
