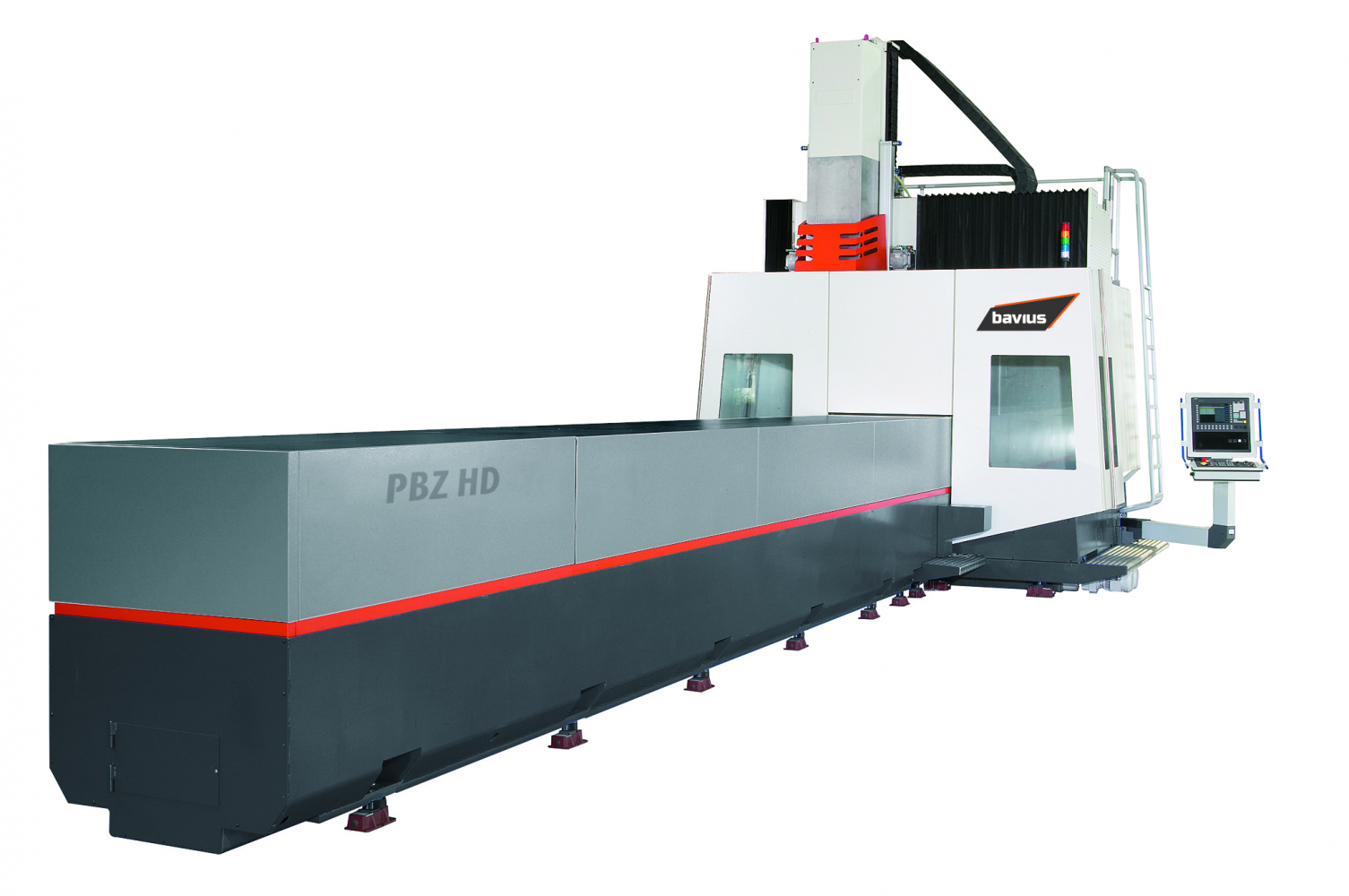

PBZ HD

bavius

Enquire

High-performance profile machining for demanding applications with highest chip removal rates

The PBZ HD profile machining centre offers high material removal rates up to 6.5 l/min when cutting aluminium profiles and solid material as well as stable and precise machining. The basis for this is provided by the rigid machine design with fixed portal as well as a head and spindle combination designed for powerful and dynamic 5-axis simultaneous machining that guarantees optimum performance. The PBZ HD profile machining centre offers full 5-axis simultaneous machining and allows interference-free, precise machining over the entire workpiece length up to max. 30,000 mm.

Your Advantages

  • Precise high-performance profile machining with highest chip removal rates
  • Highly dynamic 5-axis machining of composites, aluminium and steel
  • 5-side complete machining of profiles and solid material
  • Full 5-axis simultaneous machining
  • Interference-free machining over the entire workpiece length up to max. 30,000 mm
  • Optional solutions for automation
  • Best ergonomics
  • Integrated chip management over the entire machine length
Download PBZ HD Specifications
Specifications
Max. workpiece length 30,000 mm
Max. workpiece diameter (WxH) 800 x 300 mm (Clamping vice version)
800 x 575 mm (Table version)
Max. axis travel Y/Z-axis Y-axis: 1,500 mm
Z-axis: 1,000 mm
Max. travel speed X/Y/Z-axis 70/40/40 m/min (Rack drive)
Spindle data:
Power (S1) From 45 up to 63 kW
Power (S6) From 58 up to 81 kW
Spindle speed From 20,000 up to 30,000 rpm
Torque (S1) From 31 up to 60 Nm
Torque (S6) From 40 up to 75 Nm
Tool interface HSK 63A
Max. acceleration 4 m/s2
Tool magazine Disc type tool magazine with 36 slots
Control Siemens 840D SL
