MV134E
Quaser

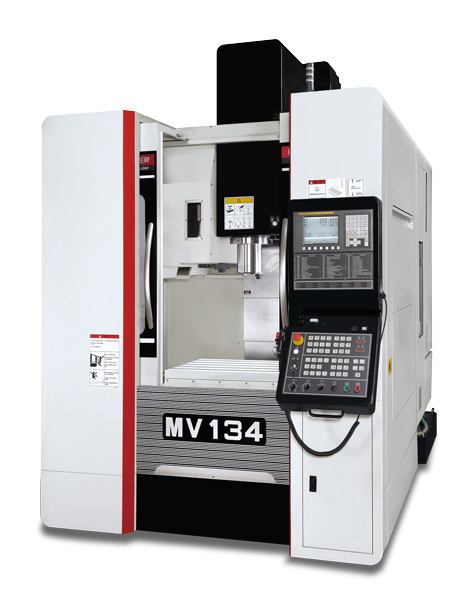

The new Quaser vertical machining centre, MV134 is developed to meet the demands of high efficiency within a compact footprint, whilst maintaining high rigidity and high accuracy, typical of the MV1 series.
Advantages include:
MV134 3 Axis Vertical Machining Centre
Fanuc Oi-MF Control
661 x 572 x 560mm XYZ Travels
12000rpm DDS Spindle - BT40 - 30 Station Swing
Arm Toolchanger - 8bar TSC - Coolant Wash Down and Gun
Scraper Type Chip Conveyor
|
Technical data |
MV134C |
MV134E |
MV134P |
|
Work range |
|||
|
Table size (mm) |
940 x 550 |
940 x 550 |
940 x 550 |
|
Travel X (mm) |
661 |
661 |
661 |
|
Travel Y (mm) |
572 |
572 |
572 |
|
Travel Z (mm) |
560 |
560 |
560 |
|
Table load capacity (kg) |
500 |
500 |
500 |
|
Main spindle |
|||
|
Spindle taper |
40 taper |
40 taper |
40 taper |
|
Max. spindle speed |
12K |
9K ~ 12K |
9K~20K |
|
Tool changer |
|||
|
Magazine positions |
30 (std.) |
30 (std.) 48 / 60(opt.) |
30 (std.) 48 / 60(opt.) |
|
Max. tool diameter (mm) |
76.2 |
76.2 |
76.2 |
|
Max. tool dia. Due to neighbour pots are empty (mm) |
150 |
150 |
150 |
|
Max. tool length (mm) |
300 |
300 |
300 |
