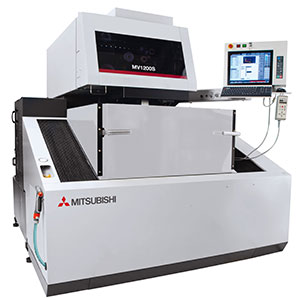

MV1200S

Mitsubishi Electric

Enquire

Achieve high level of efficiency and production with the MV1200S wire cut EDM system.

Economical production is achieved by a combination of high cutting speeds and trend-precision, coupled with low power consumption. The MV-S series with the non-contact and therefore wear-free tubular direct-drive opens a new chapter for Eroding. Less wire consumption and less power consumption ensure economic benefits that pay off year after year. Reliable, man-free operation is ensured by the patented wire threading around the clock.

Key benefits of the MV1200S include:

  • Travel Strokes X Y Z: 400 x 300 x 220 mm
  • Workpiece Dimension: 810 x 700 x 215 mm
  • Workpiece Weight: 500kg
Download MV1200S Specifications Download MV1200S File 1
Technical Data

Tubular Shaft Drives with linear scales (X /Y)

Yes

Control M800 with 19” full-touch monitor

Yes

Hand pilot with configurable LCD monitor

Yes

Vertical front door

MV1200S manual

MV2400S / MV4800S automatic

Digital AE II generator

Yes

Ethernet/DNC/FTP

Yes

Preparation for automation

Optional

McAfee AntiVirus embedded

Optional

Production data output

Optional

2D CamMagic on-board

Yes

Corehold technology

Optional

Job scheduler / Job scheduler+

Optional

Sleep mode

Yes
