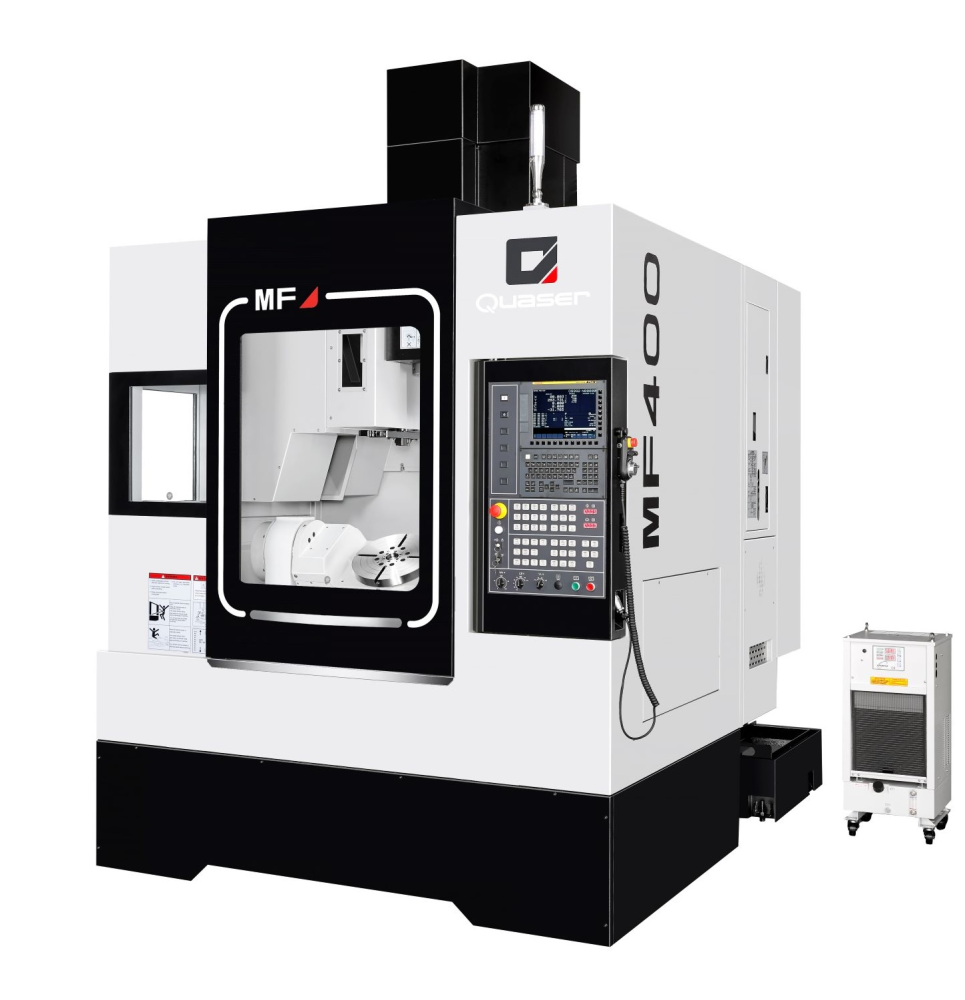

MF 400 – C / U
Quaser
Vertical Machining Centre
The MF 5 axis series of machining centres from Quaser deliver powerful and accurate CNC high-speed vertical machining and are renowned for their state-of-the-art technology.
Benefits of the MF series include a wide working envelope, rigid construction, and high chip removal capacity.
The MF range is typically used in the automotive, tooling and aviation sectors.
Advantages include:
- Pallet size: 265 (mm)
- Travel X / Y / Z: 680 / 610 / 510 (mm)
- ATC capacity:120
- Pallet capacity: 40
- Workpiece size: Ø400 x 300mm
- Total load capacity: 100kg (110 Nm)
- Unique spindle technology
- ATC system
Technical specification
| Technical data | MF400C | MF400U |
|---|---|---|
| Work Range | ||
| Table size (mm) | Φ320 | |
| Max. swing (mm) | Φ400 | |
| Max. work piece size (mm) | Φ400x300 | |
| Travel X (mm) | 410 | |
| Travel Y (mm) | 610 | |
| Travel Z (mm) | 510 | |
| Table load capacity (kg) | 100 (11 kg-m) | |
| Main spindle | ||
| Spindle taper | 40 taper | |
| Max. spindle speed | 10K ~ 20K | 10K ~ 20K |
| Tool changer | ||
| Magazine positions | 30(std.) 48/60/120(opt.) | |
| Max. tool diameter (mm) | 76.2 | |
| Max. tool dia. Due to neighbour pots are empty (mm) | 125 | |
| Max. tool length (mm) | 280 | |
