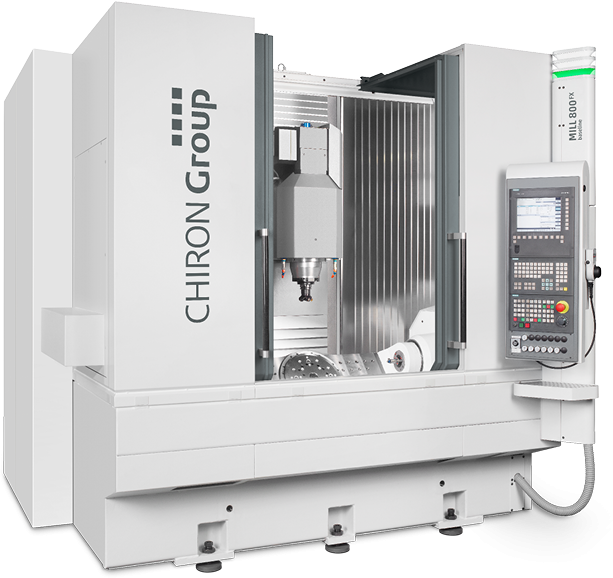

BASELINE MILL 800 - 5 AXIS

Chiron

Enquire

With this new product line our engineers have combined proven technologies with CHIRON perfection.

The results are our three optimally configured BASELINE machines. These cost-effective, fully specified precision machining centres are ready and waiting to meet your production demands.

The Mill800 offers optimal conditions for highly productive cutting and accurate machining capabilities. One of the machines many unique strengths is its high milling capacity, while offering stability, reliability and little maintenance. With the Baseline machining centre you can produce the highest quality machining operations such as slots, holes, pockets and tight geometries with high process stability. You receive the MILL800 Baseline with the CHIRON 2-axis Tilt Rotary Table CASD 280 and Siemens NC-control

Your advantages

  • Perfectly configured
  • Cost effective
  • Universal application
  • Long low-maintenance life
  • Global comprehensive support
  • Quality “Made by CHIRON, Germany”
Download BASELINE MILL 800 - 5 AXIS Specifications
Technology information
Travel (X / Y / Z) 800 / 630 / 550 mm
Main spindle 12.000 min-1
Drive power (10% ED) 140 Nm
Torque 90 Nm
Tool places 40 tools
Tool shaft HSK-A63 (SK40)
Rapid traverse 40m/min
NC-control Siemens
Rotary table CASD Ø 280
MC control Siemens/Heidenhain
