AS200MY

Nakamura-Tome

Powerful milling and turning centre at a competitive cost.

Linear Guideways on all axes, +/- 41mm Y-axis, 11/7.5kW spindle motor
Spindle speed 4500min-1, Driven-tool speed 6000min-1
Faster rapid traverse 24m/min for the X-axis,and 36m/min for the Z-axis
Bar capacity 65mm standard. 8” Chuck
All FANUC, CNC control and servo drives.
15 Station turret
Gearless Direct Belt Driven tools
Ultra Compact Footprint

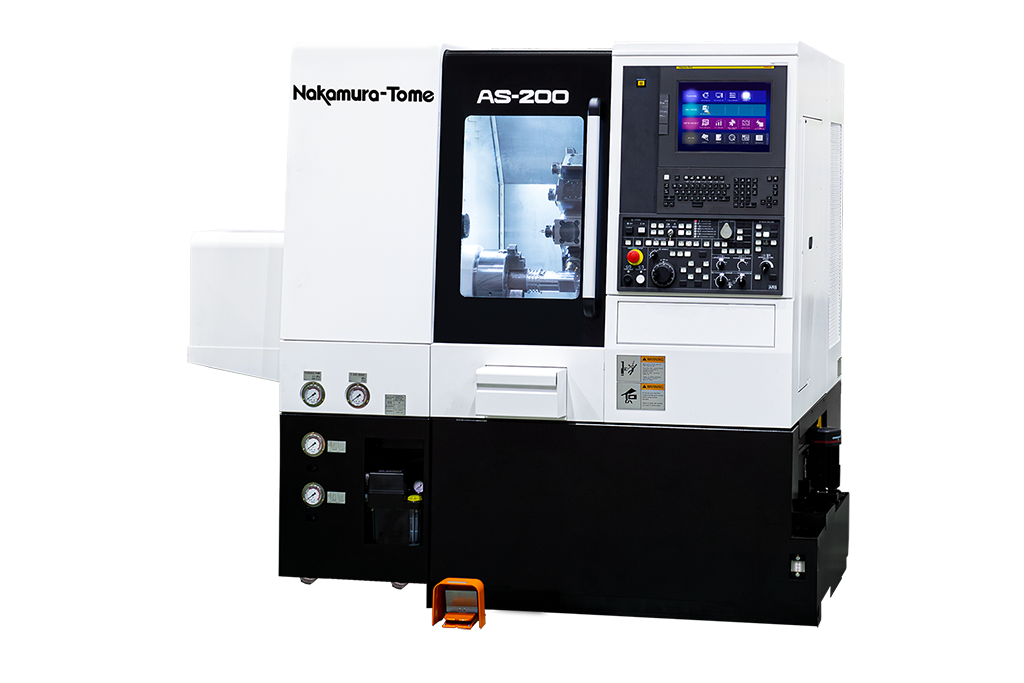

An image of AS200MY

Image number 1 of AS200MY

Image number 10 of AS200MY

Image number 11 of AS200MY

Image number 12 of AS200MY

Image number 13 of AS200MY

Image number 14 of AS200MY

Image number 15 of AS200MY

Image number 2 of AS200MY

Image number 3 of AS200MY

Image number 4 of AS200MY

Image number 5 of AS200MY

Image number 6 of AS200MY

Image number 7 of AS200MY

Image number 8 of AS200MY

Image number 9 of AS200MY

Download AS200MY Specifications download icon

General specification

Technical specification

Technology

General
Machine height	1850mm
Floor space (Length)	1650mm
Floor space (Width)	1600mm
Machine weight	3200kg
Capacity
Max. turning diameter	340mm / 280mm
Max. turning length	300mm
Distance between centre	427mm
Bar capacity	65mm / 71mm (op.)
Chuck size	215mm (8”)

Axis travel
Slide travel X	227.5 / 212.5mm
Slide travel Z	320mm
Slide travel Y	±41mm
Rapid feed (X)	24m/min
Rapid feed (Z)	36m/min
Rapid feed (Y)	6m/min
Spindles
Spindle speed	0 - 4500min-¹
Spindle speed range	Stepless
Spindle nose	A2-6
Hole through spindle	80mm
I.D. of front bearing	110mm
Hole through draw tube	66mm 71mm (op.)

C-axis
Least input increment	0.001°
Least command increment	0.001°
Rapid index speed	600min-¹
Cutting feed rate	1 - 4800°/min
C-axis clamp	Disk clamp
C-axis connecting time	1.5sec.
Turret
Type of turret head	Dodecagonal drum turret / 15 station turret
Number of Tool stations	24 / 15
Number of Indexing positions	24 / 15
Tool size (square shank)	20mm, 25mm
Tool size (round shank)	Ø 32mm
