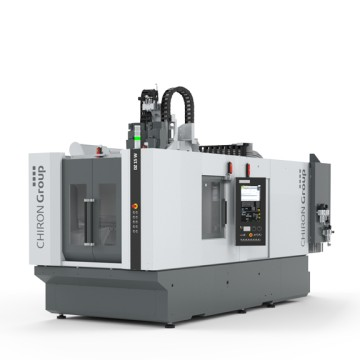

Fast, powerful, single and twin-spindle precision milling centres for profitable series production.
The CHIRON 15 series machining centres are among the best machine tools worldwide of their class in terms of speed, compact construction, stability and reliability. They have enormous ability for high milling capacity. Numerous configuration and equipment options provide the ideal solution for any job. These machining centres can be supplied as single-, double or four-spindle - either with the lightning fast basket tool changer or with a pick-up tool chain magazine. Based on its modular construction, every basic 15 machine can be arranged to provide a perfect individual solution.
Travel X-Y-Z | up to 730-400-425 mm |
Spindle power | up to 37 kW |
Spindle speed | up to 20.000 rpm |
Axis acceleration | up to 1,2 g |
Rapid feed rate | up to 75 m/min |
Chip-to-chip time | approx. 1.7 s |
Number of tools | max. 187 |
Tool taper | ISO/CAT 40 / HSK 63 |
