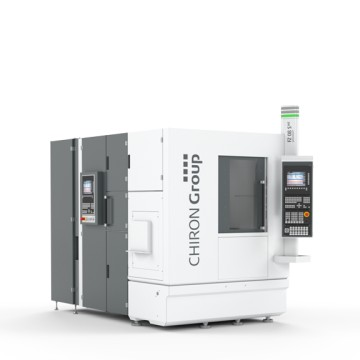

08 Series

Chiron

Enquire

Fast, compact milling centres for high precision and diverse applications.

The CHIRON 08 series machining centres are among the most versatile machines in the compact category. These high performance machines are easy to set up and to operate, very stable, highly dynamic and low maintenance. With its modular design, and numerous configuration possibilities, every 08 basic machine can be customised into a perfect solution for your requirements. The machining centres are available as single or double spindle and Millturn variant.

Machine concept

Perfectly matched high-tech modules

Meeting the highest demands and customised production application

Highly flexible – due to the modular building block principle:

  • Vertical moving column principle
  • Compact installation area from width x depth 1260 x 1990 mm
  • Steel mineral cast machine bed
  • High rigidity and thermal stability
  • Motor spindles with water cooling
  • Precision glass scales on all axes
  • Dynamic direct drives and precision guides
  • Robust CHIRON rotary axes
  • Fully enclosed work area; stainless steel covers
  • Smooth, steep walls for ideal chip flow directly into the chip conveyor
  • Ergonomic operating and loading concept
  • Service-friendly access to all units
  • Low-maintenance and long-lasting
Download 08 Series Specifications
Technology information
Travel X-Y-Z up to 450-270-310 mm
Spindle power up to 18 kW
Spindle speed up to 54,000 rpm
Axis acceleration up to 1.3 g
Rapid feed rate up to 75 m/min
Chip-to-chip time approx. 2.1 s
Number of tools max. 96
Tool taper HSK 32 / HSK 40
